Acute Respiratory Distress Syndrome

First described in 1967, acute respiratory distress syndrome (ARDS) has had many names — double pneumonia, shock lung, post-traumatic lung, respirator lung, and Da Nang lung — reflecting the heterogeneity of the syndrome. Treatment of ARDS requires correcting the underlying cause as quickly as possible while supporting the lungs with mechanical ventilation in a way that minimizes injury from mechanical ventilation. Advances in the treatment of underlying causes and ventilation methods account for most of the reduction in mortality in patients with ARDS. In this section, we review the following topics related to ARDS:

• Pathophysiology and Diagnosis

• Mechanical Ventilation

• Additional Treatments



Pathophysiology and Diagnosis

ARDS is a disorder of oxygenation that is secondary to diffuse alveolar damage. The damage is scattered and nonhomogeneous throughout the lungs, lending to challenges in the treatment of this disease.

Causes

The causes of the inciting injury are broad and include pneumonia, sepsis, and aspiration (most cases), as well as trauma (lung contusion and nonthoracic), pancreatitis, inhalation injury, transfusion-related acute lung injury (TRALI), drowning, hemorrhagic shock, major burn, cardiopulmonary bypass, and reperfusion edema after lung transplantation or embolectomy.

Pathophysiology

The subsequent inflammatory response to the underlying injury leads to damage to epithelial barriers (exacerbated by mechanical stretch) and accumulation of protein-rich edema fluid in alveoli. Over time, epithelial integrity is reestablished, and alveolar fluid is reabsorbed. Fibrosis can follow and increase the risk for mortality. Physiologically, the alveolar damage results in ventilation-perfusion mismatch (V/Q mismatch), as evidenced by observations of increased shunting (alveoli unable to exchange oxygen) and dead space (microvascular injury leading to lack of perfusion).

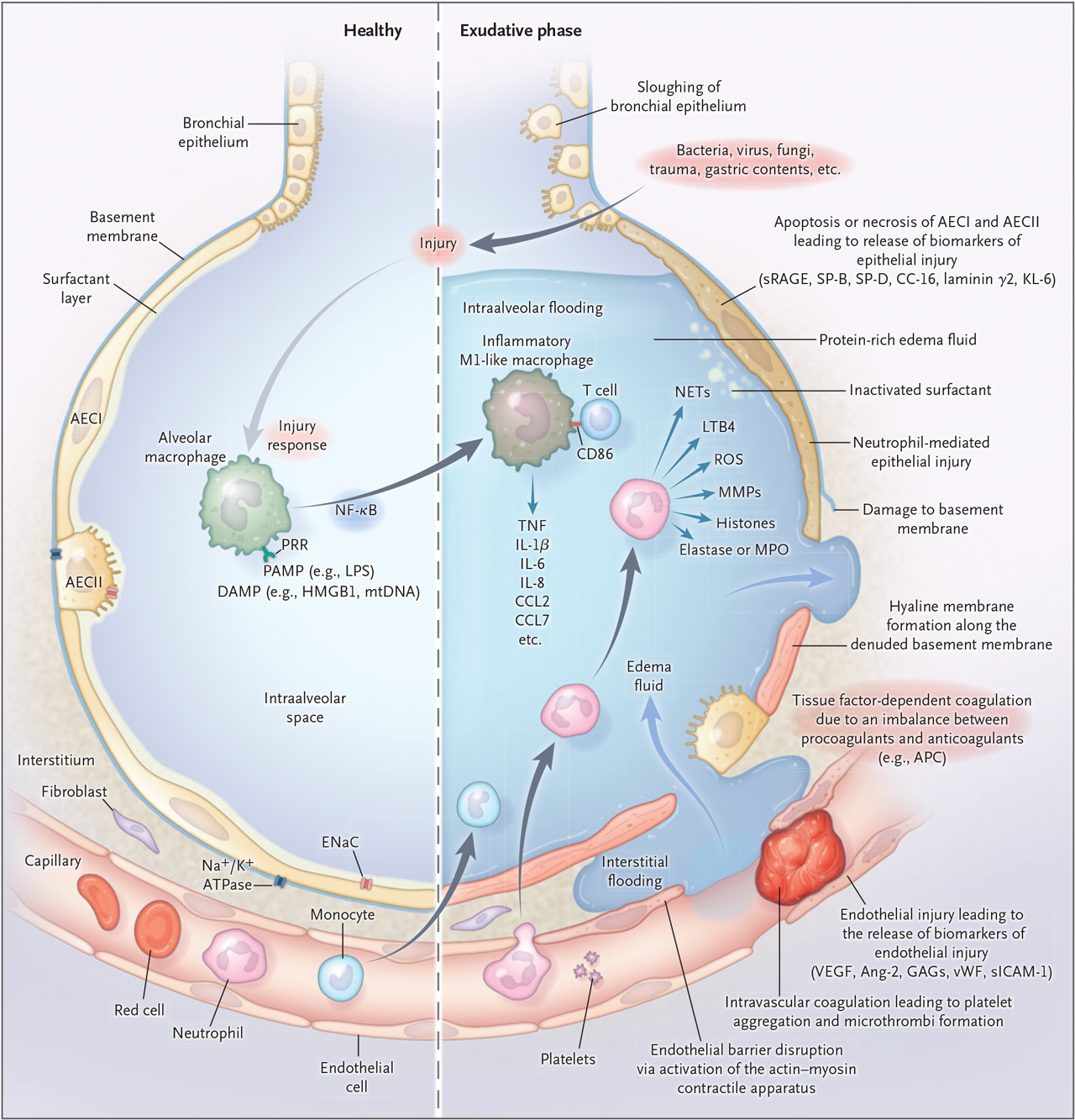

The following schematic illustrates ARDS pathophysiology during the early injury phase:

(Source: Acute Respiratory Distress Syndrome. N Engl J Med 2017.)

Diagnosis

Because reliable biomarkers for the underlying injury of ARDS are not yet known, diagnosis is based on clinical criteria. In 2012, the criteria for ARDS were revised in the Berlin Definition with the goal of identifying patients with evidence of alveolar edema on chest imaging caused by intrinsic lung injury rather than increased hydrostatic force (e.g., heart failure; see examples) and with hypoxemia (defined by the ratio of partial pressure of arterial oxygen [PaO₂] to fraction of inspired oxygen [FiO₂]) that requires some ventilation support (positive end-expiratory pressure [PEEP] ≥5). The severity categories also correlate with 90-day mortality.

A limitation of the Berlin Definition is the use of blood gas measurement for partial pressure of arterial oxygen (PaO₂). When blood gas measurement is not available, oxygen saturation by pulse oximetry can be used as a surrogate to avoid underdetection.

Note: Mild ARDS was referred to as acute lung injury (ALI) in some literature before the publication of the Berlin Definition.

Mechanical Ventilation

After addressing the underlying cause of ARDS, the next step is to provide supportive care that limits further lung injury. Over time, physicians began to realize that ventilators can cause harm through the various mechanisms described below.

Causes of Ventilator-Induced Lung Injury

• volutrauma (barotrauma): Delivering too much volume/pressure leads to overdistention of alveoli. Because the compliance (delta volume / delta pressure) of the ARDS lung is heterogenous, the same airway pressure may cause underdistention of a more affected lung region with low compliance and overdistention of a less affected region.

• atelectrauma: Allowing alveoli to collapse completely during each breath cycle with too little airway pressure leads to shear stress and denaturation of surfactants.

• biotrauma: The physical force and trauma of ventilation (such as those described above) leads to release of mediators that sustain inflammation and translocation of proinflammatory products and bacteria through already permeable barriers, causing systemic damage.

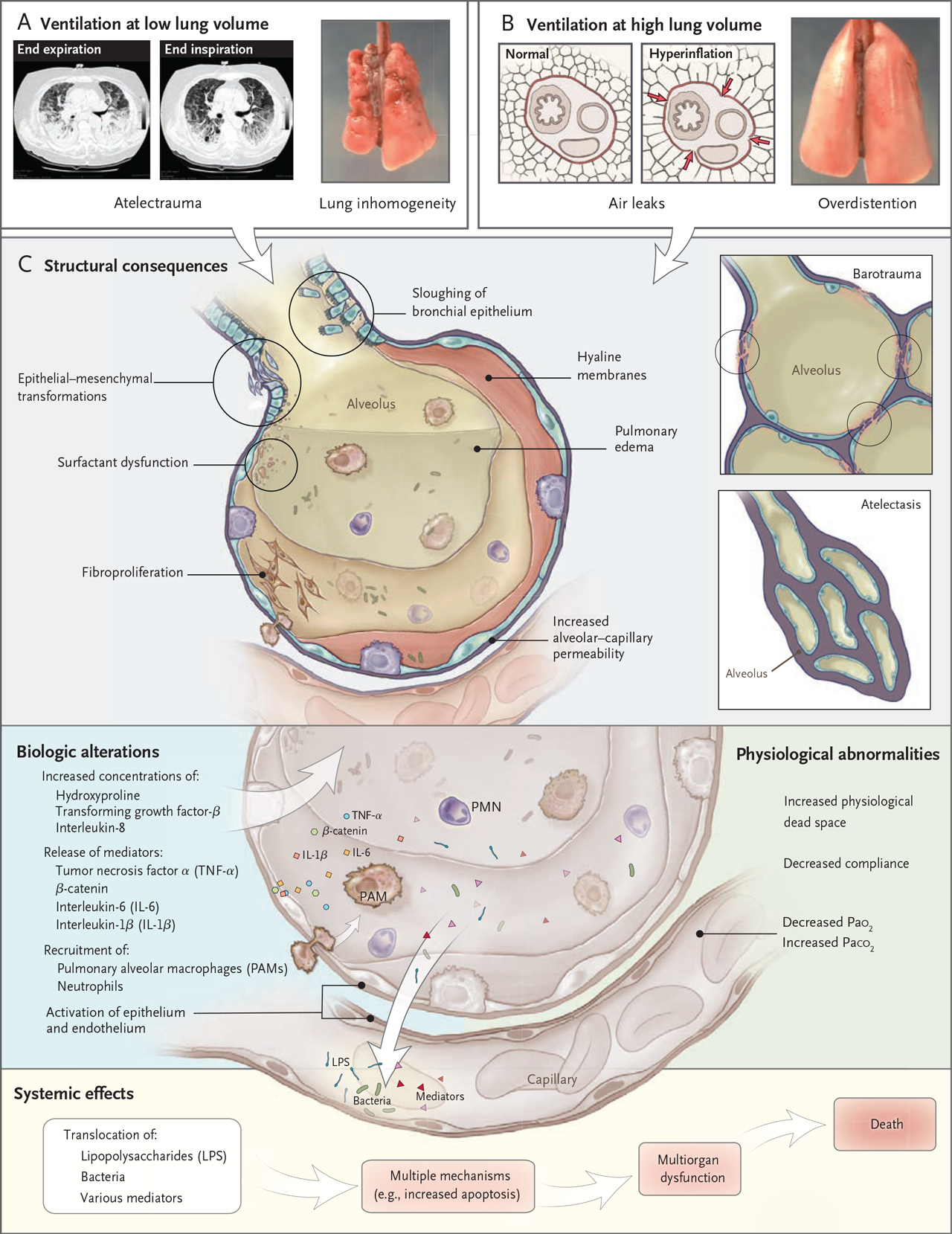

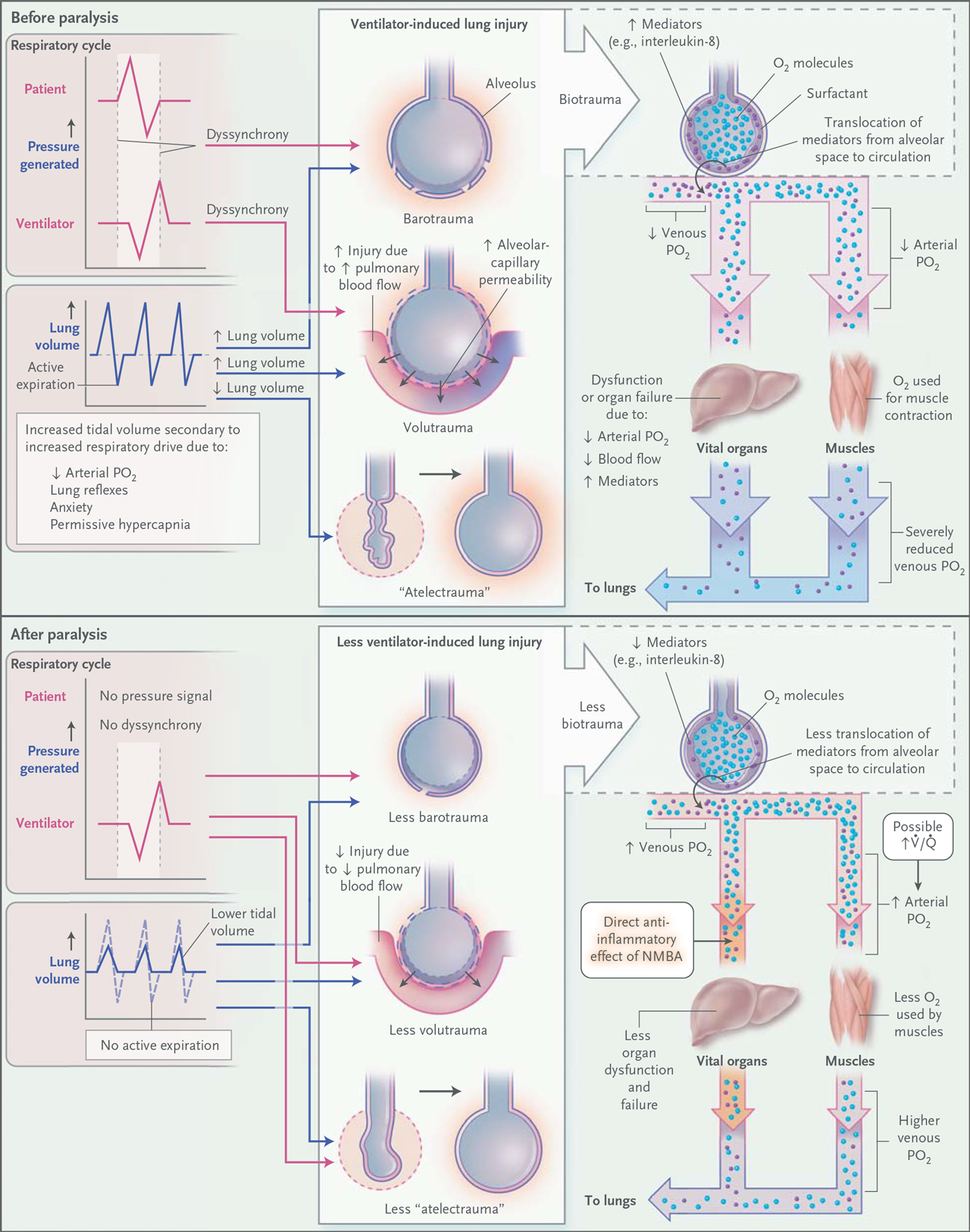

The following figure provides more details of lung damage associated with ventilation:

(Source: Ventilator-Induced Lung Injury. N Engl J Med 2013.)

Low Tidal Volume Ventilation

In 2000, the landmark ARMA trial (also referred to as the ARDSNet trial) showed that a ventilation strategy with tidal volume of 6 mL/kg of ideal body weight and a plateau pressure ≤30 cm water (H₂O) resulted in 9% lower mortality than a strategy with 12 mL/kg of ideal body weight and a plateau pressure ≤50 cm H₂O (31.0% vs. 39.8%). Although the significance of tidal volume is often emphasized, it is important to remember that the ARMA trial also limited plateau pressure.

ARDSNet ventilation is now standard of care. The ARDSNet pocket card is a useful reference for calculating the starting tidal volume and provides some general guidelines for titrating ventilator parameters.

For more on ventilator settings see Ventilation in this rotation guide.

Important notes about the ARDSNet strategy:

• The increased dead space (ventilated but not perfused lung) in ARDS limits the fraction of each tidal breath that contributes to ventilation, leading to carbon dioxide (CO₂) retention and subsequently acidemia. Although increasing the respiratory rate is helpful, a certain amount of hypercapnia (i.e., permissive hypercapnia) can prevent injury from increasing tidal volume.

• The pH goal is >7.20-7.30; a pH <7.15 may require additional treatment (e.g., bicarbonate).

• Normoxemia is not necessary, and trying to achieve it may cause more harm, often through the high PEEP required. The oxygenation goal is PaO₂ of 55-80 mm Hg or peripheral capillary oxygen saturation (SpO₂) of 88%-95%. Data are mixed on the utility of setting upper limits to the achieved PaO₂ in patients receiving mechanical ventilation, with recent data showing no difference in patient outcomes when different oxygen-saturation targets were used.

• The plateau pressure (Pplat) is the pressure measured during an inspiratory hold, when the flow is zero. Monitoring this value is useful in titrating ventilator parameters. Typically, the Pplat goal has been <30 cm H₂O.

• To achieve adequate oxygenation, PEEP is helpful for opening diseased and collapsed alveoli for oxygen exchange (i.e., recruitment).



Recruitment maneuvers (maneuvers to hold a high PEEP for a period of time) are sometimes used to improve oxygenation, but the evidence for benefit is not definitive.

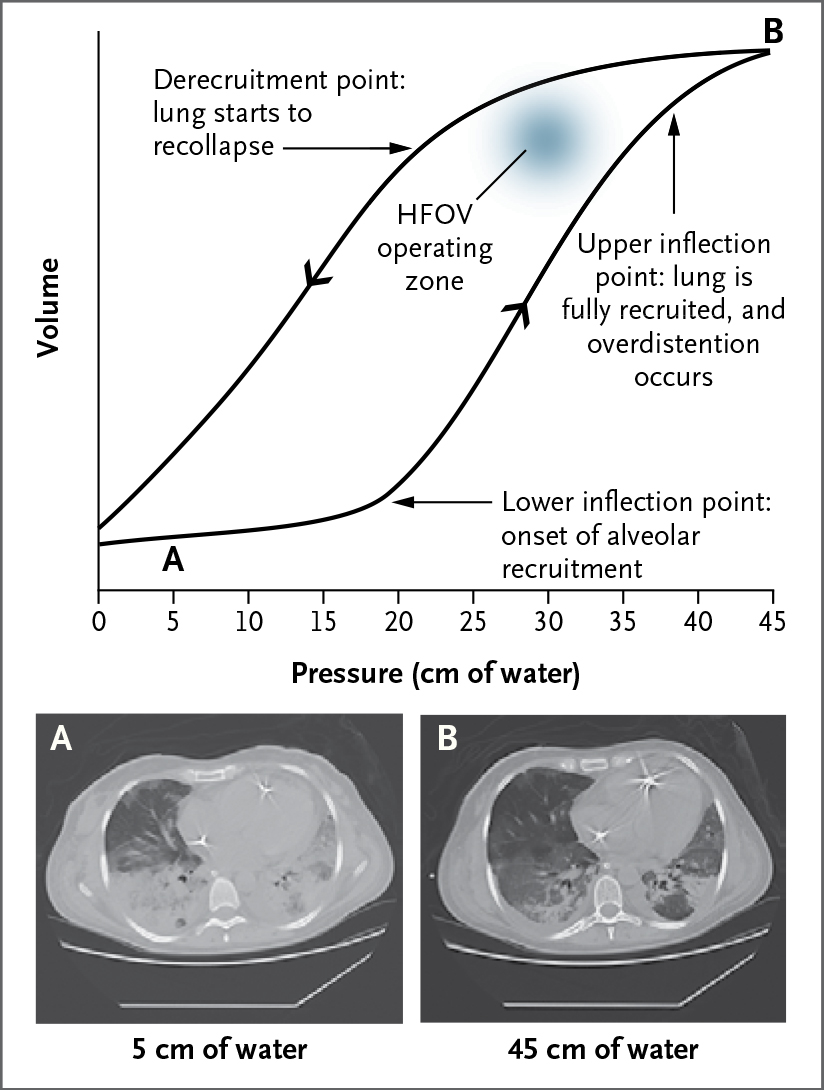

• Too much PEEP can cause overdistention and pressure on pulmonary circulation, leading to increased pulmonary resistance, decreased left-heart preload, and hypotension. One goal of adjusting the ventilator is to optimize the lung’s pressure-volume curve to stay between the ends of atelectrauma and volutrauma (see figure below).



  (This illustration is adapted from High-Frequency Oscillatory Ventilation on Shaky Ground. N Engl J Med 2013.)

• Sometimes such a high PEEP is needed that the Pplat exceeds the goal of 30 cm H₂O threshold for safety. In these situations, the high airway pressure may not be harmful because much of the pressure is needed to expand the tissue surrounding and compressing the lungs (e.g., in patients with severe obesity, massive ascites, pleural effusions, or a stiff chest wall). The transpulmonary pressure (P_tp) stresses and damages the alveoli; P_tp is the difference between alveolar pressure (P_alv), measured by airway pressure on the ventilator when flow is stopped, and pleural pressure (P_pl) (see figure below).

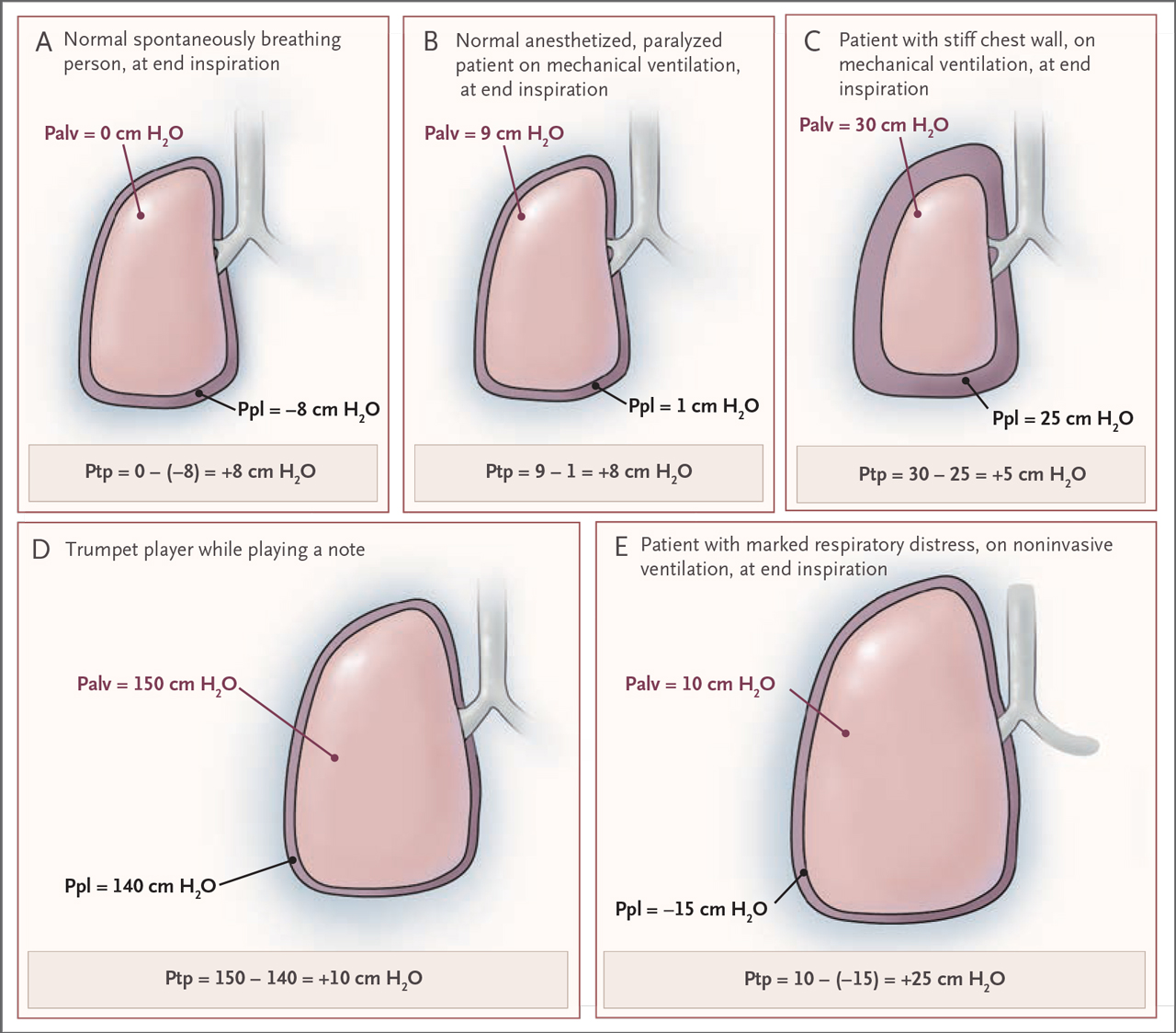

• An esophageal balloon can estimate the pressure in the pleural space, and is often used as a surrogate for P_tp to help titrate PEEP. One small, single-center trial showed that use of esophageal balloons was associated with improved oxygen and compliance and a promising nonsignificant reduction in mortality, but a larger trial did not confirm this benefit. Furthermore, data suggest that the driving pressure (Pplat − PEEP) may be a more useful index because changes in this value have been associated with mortality (specifically, driving pressures >15 cm H₂O), even in patients receiving “acceptable” plateau pressures.



(Source: Ventilator-Induced Lung Injury. N Engl J Med 2013.)

Additional Treatments

In addition to protective lung ventilation, the following treatments may also be helpful:

• conservative fluid management

  • While many patients with ARDS have concurrent hypotension or shock and require fluid resuscitation, too much added fluid to increased capillary permeability leads to pulmonary edema that exacerbates lung injury. You might hear attendings and respiratory therapists say, “Dry lungs are happy lungs.” As such, patients with ARDS often require diuretics as part of their treatment strategy.

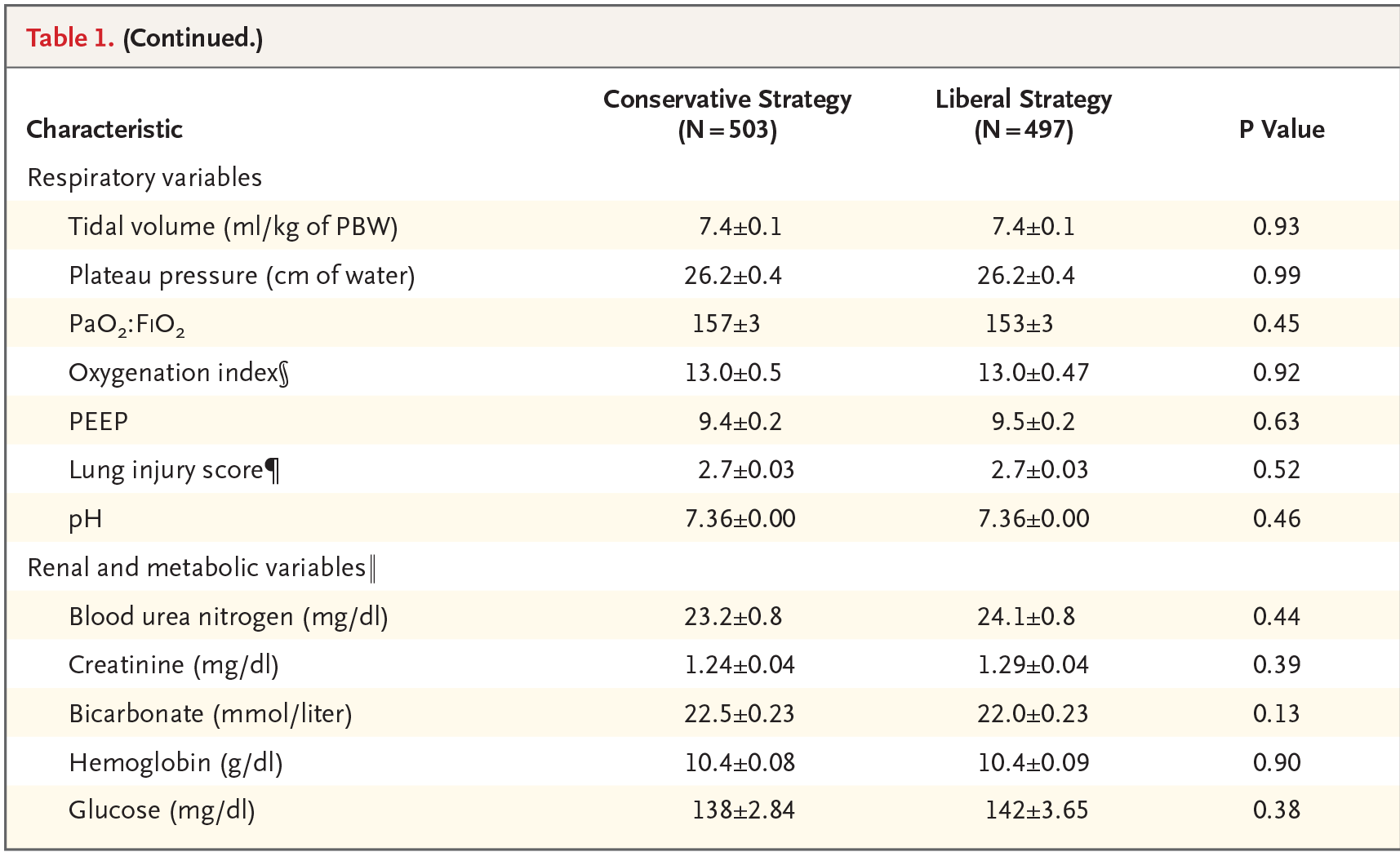

  • The FACTT trial showed that a conservative fluid strategy decreased duration of mechanical ventilation, compared with a liberal strategy.

• prone positioning

  • Patients typically lay supine in the intensive care unit (ICU). This position is associated with negative gravitational effects on the posterior lung regions, causing the heart to compress the left lung and lead to more dependent atelectasis from interstitial edema. Placing patients in the prone position allows more lung regions to be functional and improves V/Q mismatch. (View a video of prone positioning in a patient with ARDS.)

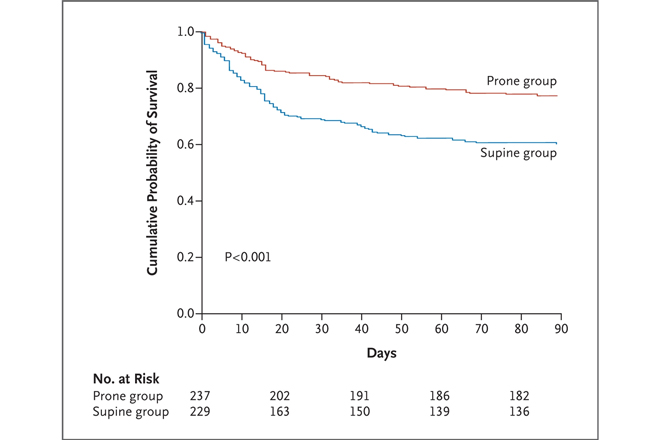

  • The PROSEVA trial showed that, compared with supine positioning, prone positioning within 36 hours of mechanical ventilation in patients with a PaO₂:FiO₂ ratio <150 mm Hg reduced 28-day (16.0% vs. 32.8%) and 90-day mortality.

  • Prone positioning requires an experienced care team to move the patient safely and prevent subsequent complications (e.g., pressure ulcers, extubation, intravenous decannulation).

• neuromuscular blockade

  • Synchrony between the patient’s respiration and the ventilator improves oxygenation by ensuring the right tidal volume (rather than the patient trying to exhale when the ventilator is delivering a breath) and prevents injury (e.g., panel E in the figure above, depicting high transpulmonary pressure generated by the patient trying to inhale on top of the ventilator delivering a breath). Synchrony can be enhanced with the use of neuromuscular blocking agents (NMBA).

  • In 2010, the ACURASYS trial showed that the use of the NMBA cisatracurium within 48 hours of mechanical ventilation in patients with a PaO₂:FiO₂ <150 reduced 90-day mortality, as compared with placebo (31.6% vs. 40.7%), and increased the number of ventilator-free days.

    • Much of the benefit of cisatracurium in the ACURASYS trial is thought to be from minimizing ventilator-induced lung injury from dyssynchrony, once again illustrating the key principle of avoiding harm in the treatment of ARDS. Other benefits include the possible anti-inflammatory effects of NMBA and decreased oxygen requirement by muscle paralysis (see figure below). One negative feature of NMBA use is heavy sedation, which is associated with definite adverse effects.

  • In 2019, the ROSE trial challenged the mortality benefit of neuromuscular blockade reported in the ACURASYS trial. The ROSE trial found no significant difference in 90-day mortality between cisatracurium with deep sedation and light sedation with no neuromuscular blockade. The results of this trial have been controversial given the limited inclusion criteria (of 1004 patients screened, only 340 were included) and other confounders (e.g., differences in sedation).

    • The difference in mortality between the two trials is attributed to differences in sedation levels. One explanation offered in an editorial is “reverse triggering” — a phenomenon that describes additional gas delivery and overinflation in deeply sedated, but not paralyzed, patients after a mechanically assisted breath (breath delivered by the ventilator triggers a contraction of the diaphragm, which initiates a spontaneous breath). In the ACURASYS trial, the negative physiological consequences of reverse triggering might have disadvantaged the “control” patients and led to the observed mortality benefit in the paralyzed patients.

    • In the ROSE trial, patients in the cisastracurium group also had serious cardiovascular events, providing another reason to avoid this treatment.

  • In general, routine use of neuromuscular blockade (NMB) in patients with moderate-to-severe ARDS is not recommended. However, NMB can be considered in patients at risk of reverse triggering or in those with increased respiratory drive or other factors that could cause marked transpulmonary pressure swings.

• glucocorticoid administration

  • In 2020, the DEXA-ARDS trial demonstrated a 60-day mortality benefit in mechanically ventilated patients receiving dexamethasone (20 mg intravenously [IV] for 5 days followed by 10 mg for another 5 days) versus controls (21% vs. 36%). Patients receiving dexamethasone also had more ventilator-free days.

(Source: Neuromuscular Blocking Agents in ARDS. N Engl J Med 2010.)

Refractory hypoxemia: After exhausting the established therapies described above, the following additional treatments may be attempted in refractory cases, although strong evidence of benefit is lacking.

• airway pressure release ventilation (APRV): APRV is a mode of ventilation that inverts the pressure settings; a continuous high positive airway pressure is applied and intermittently released, allowing ventilation with the goal of sustaining lung recruitment.

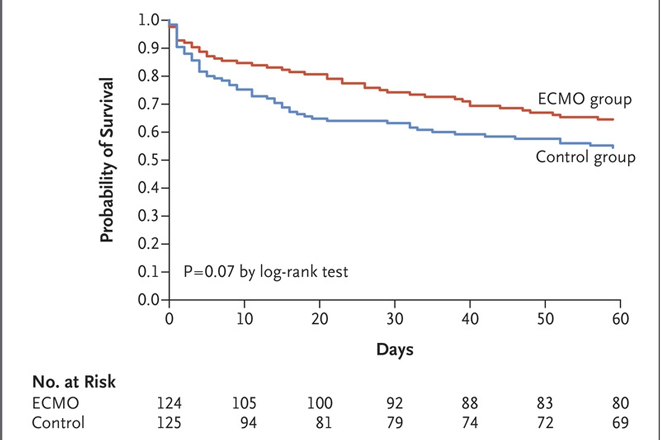

• extracorporeal membrane oxygenation (ECMO): Venovenous ECMO is reserved for the sickest patients with refractory hypoxemia (resources differ on the exact indications, but generally PaO₂:FiO₂ ratio <60-80). Read more about ECMO in a recent NEJM Evidence review and on the Extracorporeal Life Support Organization website.

• inhaled nitric oxide: Inhaled nitric oxide can decrease pulmonary vascular resistance locally in ventilated areas of the lung and shunt more blood to that area, thus improving V/Q mismatch and oxygenation. Benefit has been shown in small trials, but the effect may be transient.

• supplemental oxygen: Ventilated patients in the ICU often receive supplemental oxygen, but the appropriate target for arterial oxygen saturation remains controversial. Trials (ICU-ROX, Liberal or Conservative Oxygen Therapy for ARDS, PILOT, and HOT-ICU) have addressed this issue with somewhat differing results.

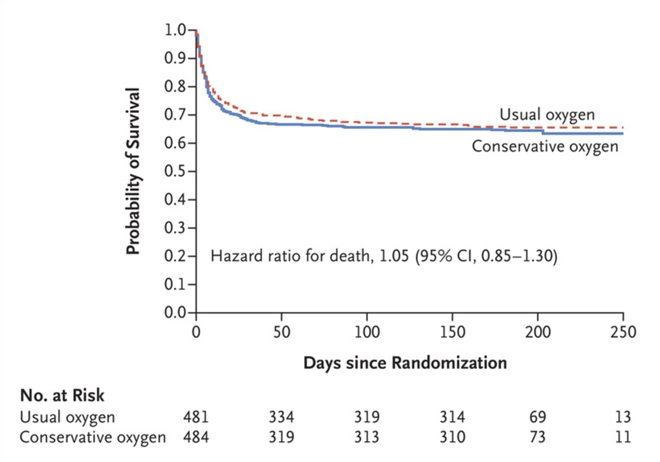

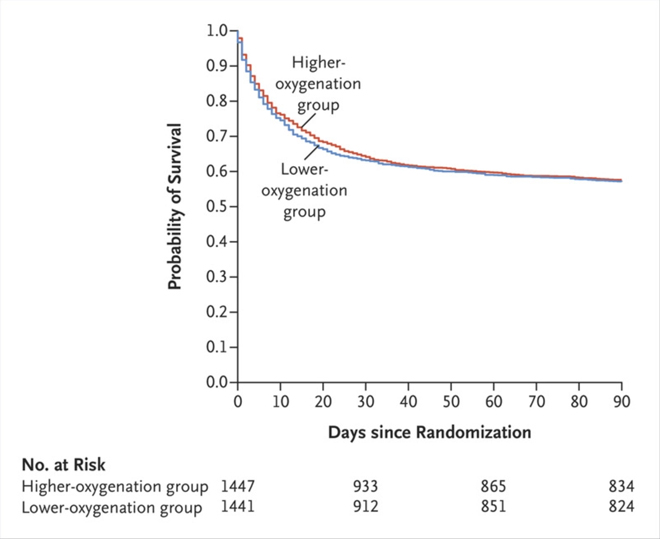

  • ICU-ROX and HOT-ICU did not show a benefit from conservative-oxygen therapy, as compared with usual care in ICU patients.

  • The LOCO₂ trial suggested potential harm from a conservative oxygen strategy, as compared with a liberal strategy, in patients with ARDS.

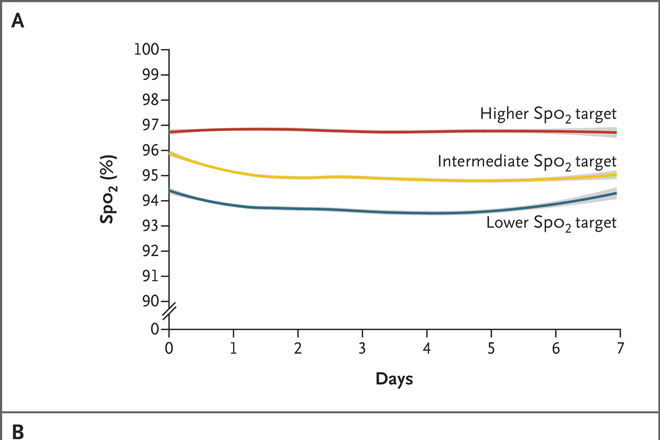

Most recently, results from the PILOT trial showed no difference in ventilator-free days among patients randomized to receive lower, intermediate, or higher SpO₂ targets (see a video summary of the results), although this study was not limited to patients with ARDS. We believe that targeting an SpO₂ of 92%−94% is reasonable.
